Himiway Big Dog Electric Cargo Bike
Himiway Big Dog Electric Cargo Bike
Couldn't load pickup availability
!!! 3% off if paid with Venmo, Zelle or cash !!!
The Himiway Big Dog boasts a unique cargo frame design that ensures the durability of the rear rack and the stability of the cargo. The sturdy frame, which is twice the thickness of regular ebike frames, combined with the low-center-of-gravity moped design, provides the most comfortable riding experience even while carrying heavy loads. The Big Dog is a great choice for riders who need extra support or want to carry large items.
Features
- With the Multifunctional Extra Large rear rack, the BIG DOG Ebike has a 400 lbs payload capacity, making it ideal for carrying heavy stuffs or giving your pet a ride.
- The moped design makes it suitable for daily commuting and gives you a comfortable and safe ride.
- The BIG DOG ebike is equipped with 20”x 4” fat tires and 750W updated motor, providing enough power to carry your heavy cargo.
- With Car-level 48V 20A battery tech, the BIG DOG Ebike can reach 60 - 80 miles.
- The intelligent pedal-assisted system can automatically adjust power according to different road conditions.
Specification
- Battery 48V 20Ah Samsung/LG lithium battery
- Range 60–80miles
- Hub Motor 750W brushless gear motor
- Total Payload Capacity 400 lb.
- Recommended Rider Heights5'0" ~ 6'2"
- Charger US standard 3.0 A smart charger
- Controller 48V/22A

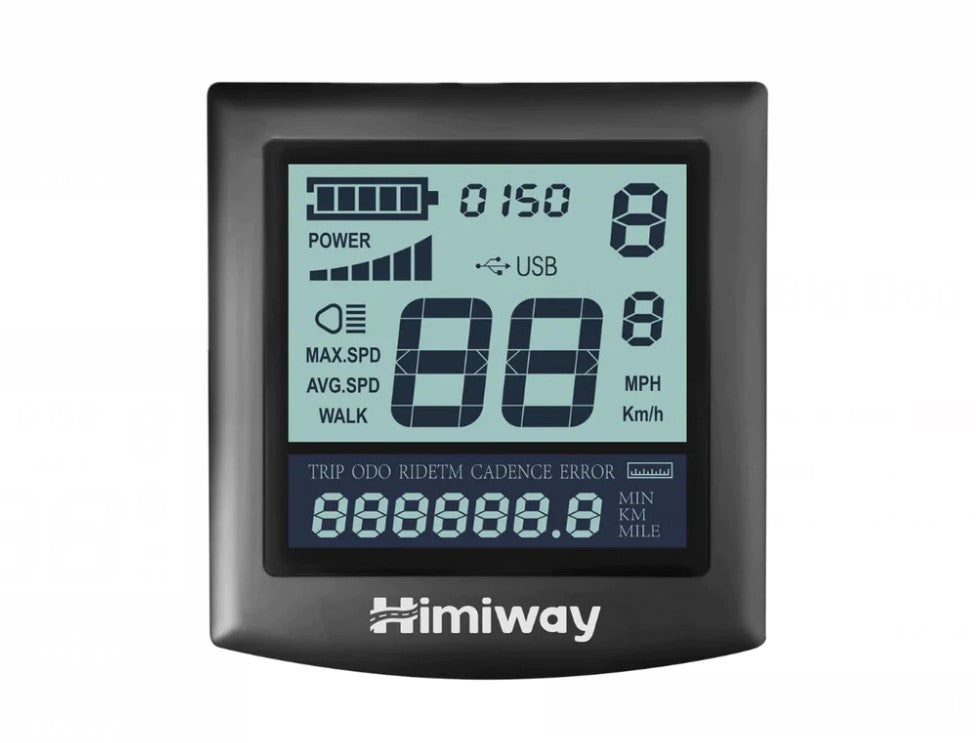

- Display LCD display with USB charging
- Weight 79 lb.
- Pedal Assist Intelligent 0~5 level pedal assist
Components
- Tires 20″ x 4″ Kenda fat tires
- Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
- Rear Light Integrated tail light
- Freewheel Shimano 7 speed gear shift system
- Brake180mm mechanical disc brakes
- Chain KMC chain
- Stem MA-5040 28.6*31.8MM
- Crank 46T*170MM 4-jaw L/R forged alloy
- Gearing Shimano- 14-28T BROWN/BK
- Front Fork Alloy front suspension fork with lockout and adjustment
- Throttle Half twist throttle
- Pedal Alloy pedal with reflectors
- Bike Frame Upgraded 6061 Aluminum frame
- Front Light 48V LED light
- Saddle SR saddle
- Seat Post 34*350mm Alloy Seatpost
- Kickstand Heavy-duty aluminum
- Spokes Alloy Wheels

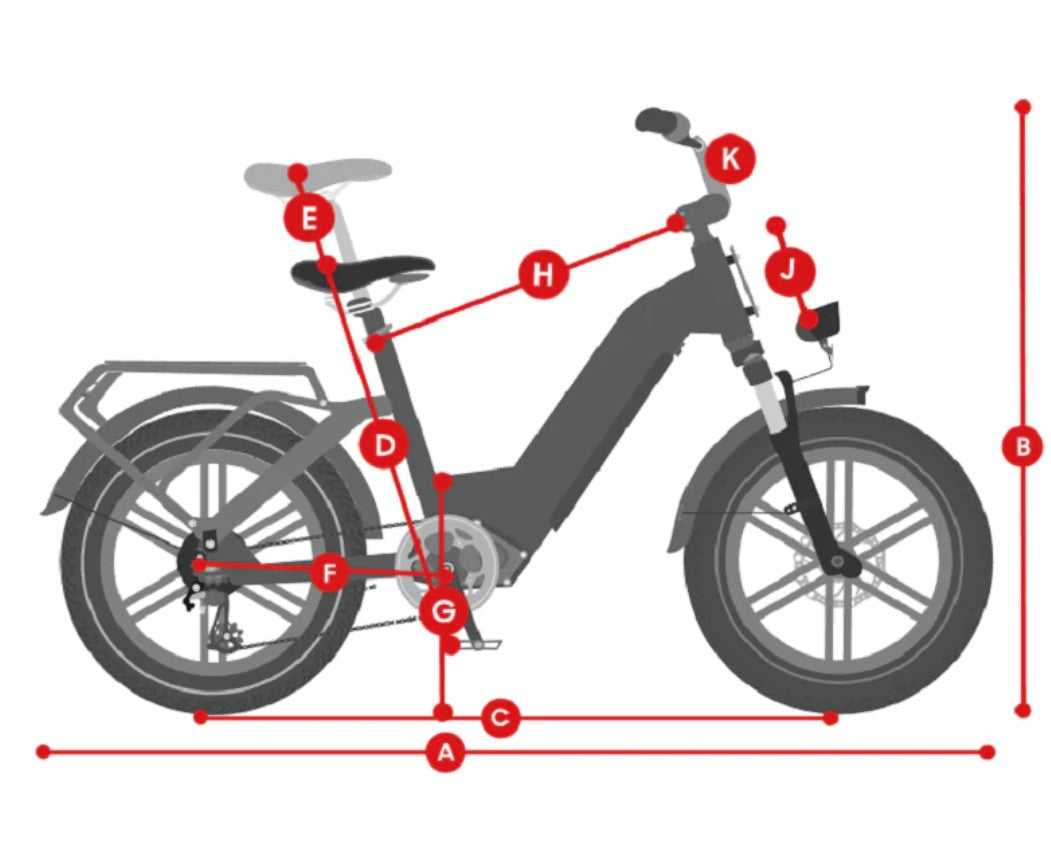

Geometry
- A – Total Length 70
- B – Handlebar Height 43
- C – Wheelbase 46.4
- D – Minimum Seat Height 27.6
- E – Maximum Seat Height 35.4
- F – Chain Stay Length 17.5
- G – Standover Height 16.5
- H – Top Tube Length 25.2
- I – Wheel Diameter 23.2
- J – Head Tube Length 8.3
- K – Handlebar Length 27.6
