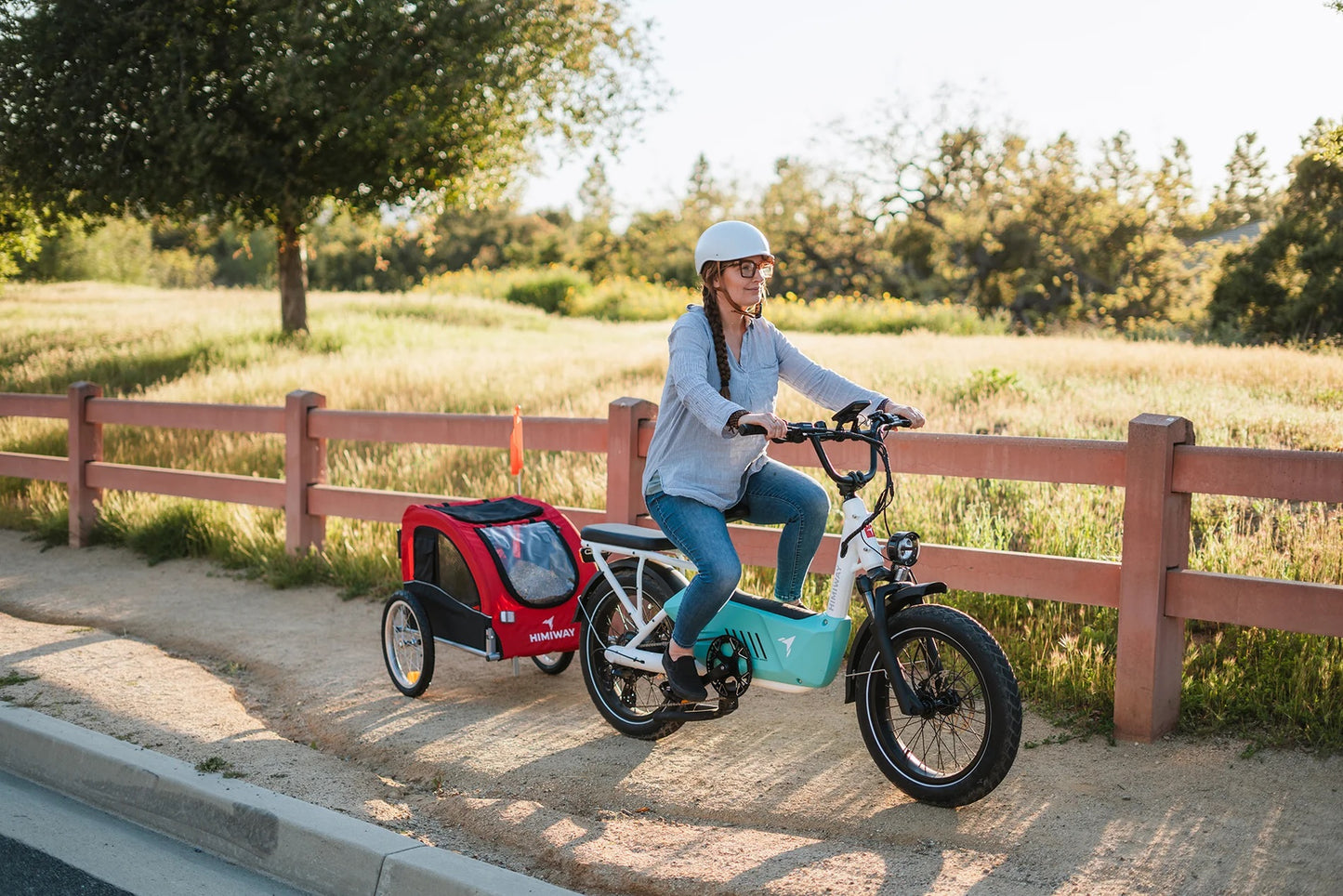

Himiway C3
Himiway C3
!!! 3% off if paid with Venmo, Zelle or cash !!!
Long Range Ebike Expert
960Wh High-Efficiency Battery
960Wh / 48V 20Ah
Equipped with a powerful LG 48V 20Ah battery, the Himiway C3 delivers an impressive 80-mile range per charge. Experience the thrill of the ride, conquer city streets, and embrace endless exploration.
BMS / Ensure your Safety
The BMS (battery management system) is critical to the battery’s safe operation, overall performance, and longevity. If it detects any unsafe conditions, the BMS shuts the battery down to protect the lithium-ion cells and the rider.
Double the Frame Thickness, Double the Payload Capacity
6061 Aluminum
Crafted from 6061 aluminum alloy, our frames combine lightweight resilience with exceptional durability. Resistant to corrosion, they guarantee enduring performance across any terrain
Piano Paint / Multiple processes
After careful polishing and multiple processes, every curve and detail present a flawless appearance. We use high-quality paint materials to ensure long-lasting and vibrant colors, resistant to oxidation and corrosion.
Enjoy Effortless Control and Seamless Riding Comfort
LCD Display
The Backlit LCD display offers essential ride data, including speed, distance, and battery level, at a quick glance
Control Handle
Upgraded with larger buttons, the Control Handle offers enhanced comfort and ease of use.
750W Brushless Geared Hub Motor
Experience superior performance with the Himiway C5's 750W motor, delivering an impressive 86Nm of torque for effortless climbs up 15° inclines and smooth rides against the wind.
|
|
48V High-brightness Front Light
Enhances visibility and safety, illuminating the path ahead to better reveal unforeseen road conditions.
Auto-Illuminating Brake Light
Frame-integrated taillights illuminate automatically upon braking, enhancing safety and visibility for night riding.
Torque Sensor
Provides real-time electric assist adjustment for efficient, smooth cycling, optimizing energy use and improving safety and stability.
Double-leg Kickstand
Double leg support enhances balance, enabling greater weight carriage on your bike without tipping.
Elegance is in the Details
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with C3
Technical Specifications
Geometry
-
A – total length70.4
-
B – handlebar height42
-
C – handlebar length28.4
-
D – wheelbase47.2
-
E – wheel diameter23
-
F – minimum seat height34
-
G – maximum seat height40
-
H – chain stay length23
-
I – frame stack31.9
-
K – effective top tube length17
-
L – head tube length8.1
-
N – standover height19
Specifications
-
Frame6061 Aluminum frame
-
HeadsetNeco H114 28.6*44*30
-
ForkTRAMA coil suspension 60mm travel 135mm thru axle
-
Front wheelRim: J57SA 20*12G*36H A/V | Spoke: 12G 172mm | Hub: MB016F-92-T 15*135mm 12G*36H
-
Rear wheelRim: J57SA 20*12G*36H A/V | Spoke: 12G 127mm/128mm | Hub: 48v 750w Himiway Hub Motor
-
TiresCST 20"x3"
-
BatterySamsung/LG 48V 20Ah
-
Motor750W brushless gear motor
-
DisplayHimiway C2 LCD Display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
Crankset44T BCD104 6061-T6 145mm
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 120L
-
GroupsetShimano altus M310 7 speed
-
Front wheel"Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15*135MM 12G*36H"
-
Rear wheelRim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor
-
RotorsF:180mm R:180mm
-
Rear brakeTektro HD-E3520 hydraulic brake
Components
-
Stem3D forged alloy Ext:40mm
-
HandlebarYC-B086 22.2*31.8*720mm
-
SaddleHimwiay saddle
-
PedalAluminum pedal
-
KickstandHeavy-duty aluminum kickstand
Others
-
Range60-80 miles
-
Controller48V/22A
-
ChargerUS standard 3.0 A smart charger
-
Rider height5'2" ~ 6'3"
-
Weight80 lb. (with battery)
-
Max. payload capacity440 lb. (with battery)
