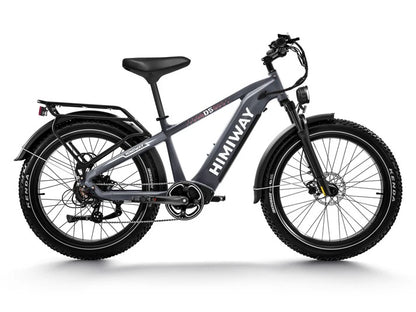

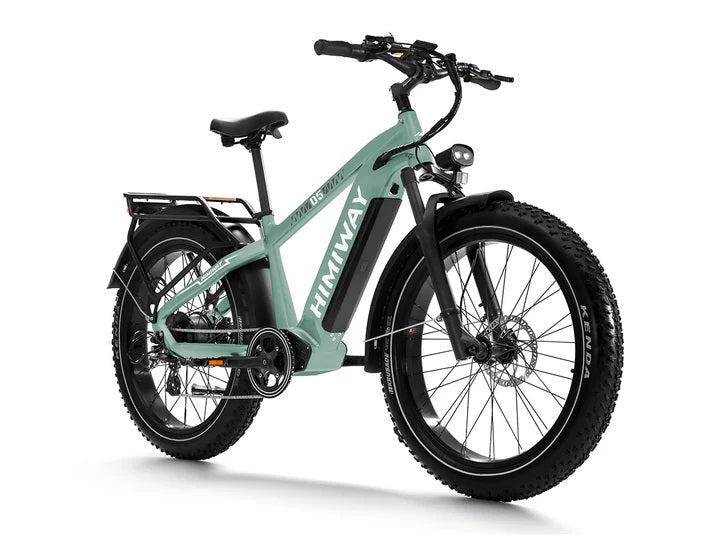

Himiway D5
Himiway D5
Go further than ever
Himiway D5 (Zebra) is equipped with a powerful 750W gear hub motor, hydraulic brakes, 400 lbs payload capacity, and upgraded inner ring. The design of 26-inch Kenda fat tire strengthens the traction, avoiding slipping on the ground and sinking in mud or snow. With removable 960Wh Samsung/LG battery capacity and 52 5000mAh cells, the riding mileage of the Zebta D5 e-bike is 80 miles with pedal assist and 60 miles range with pure electric power. Keep wild on Himiway.
The advantages of a Torque Sensor
This can feel much more natural than a bike with a cadence sensor, as it replicates the feeling of riding that many of us are used to and simply amplifies your efforts. Pedal hard and you’ll get maximum assist. Back off your intensity, and the assistance system will do likewise. Torque sensors can also be more efficient than cadence sensors, as the power delivered is based on the actual effort you put into the pedals and updates in real time. This efficiency can often mean you can eke extra miles out of a battery charge.
Long Range Expert
960Wh High-performance Lithium-ion Battery
960 Wh / 48V 20Ah
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.
BMS / Ensure your Safety
Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.
Updated 750W Motor
Fast Acceleration & Good Gradeability & Longer Lifespan
D5 Hub Motor
750W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
FOC / Field oriented control
You can think of the FOC as the brain controlling the motor in real-time. It recognizes your riding conditions and instantly calls on the motor for optimal performance. The FOC measures scooter diagnostics, which you as a driver cannot see, and then decides how to respond to your driving inputs.
Gain Extra Payload With 2X Thicker Frame
2X Thicker / Aerospace Grade Aluminum Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
Removable Battery / Built-in design
The e-bike features a removable built-in battery that is smartly designed to withstand dust, dirt, rain, and other environmental hazards. This ensures a longer battery life and a safer ride. The e-bike also looks more fashionable and modern, with a sleek and integrated battery that blends in with the frame. You don't have to worry about thieves stealing your battery, as it is securely locked inside the e-bike.
Clear at a Glance
Experience Natural Handling and Comfortable Human-vehicle Interaction
LCD Display
The Backlit LCD display provides information on speed, mileage, power, etc. (D5 Zebra Space Gray uses Curtis instrument)
Left Handle
Right Handle
The Kenda All-terrain Fat Tire
26"x4" / All Terrain
26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
Hydraulic Brakes
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Elegance is in the Details
Designed to perfectly balance outstanding performance ultimate comfort, and timeless style. Explore as never before with D5
Technical Specifications
Geometry
-
A – total length - 78.7
-
B – handlebar height - 47
-
C – handlebar length - 28
-
D – wheelbase - 49.2
-
E – wheel diameter - 28.7
-
F – minimum seat height - 20.9
-
G – maximum seat height - 31.4
-
H – chain stay length - 19
-
I – frame stack - 24.6
-
J – frame reach - 17.8
-
K – effective top tube length - 24.4
-
L – head tube length - 5.5
-
M – head angle - 65°
-
N – standover height - ST 22.4/ SO 31.1
Specifications
-
Frame - 6061 Aluminum frame
-
Headset - Neco H156EM 28.6*44-56*30
-
Fork - TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
-
Front wheel - Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
-
Rear wheel - Rim: MD-147 26*4.0""*36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 750w Himiway hub motor
-
Tires - Kenda 26*4.0
-
Battery - Samsung/LG 48V 20Ah
-
Motor - 750W brushless gear motor
-
Display - LCD display with USB charger
-
Throttle - Thumb throttle
-
Sensors - Torque sensor丨speed sensor丨brake sensor
-
Crankset - Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
-
Freewheel - Shimano MF-TZ500-7 14-28T
-
Chain - KMC Z8.3 EPT 120L
-
Groupset - Shimano altus M310 7 speed
-
Front brake - Tektro HD-E3520 hydraulic brake
-
Rear brake - Tektro HD-E3520 hydraulic brake
-
Rotors - Tektro TR180-52 F:180mm R:180mm
Components
-
Stem - Zoom TDS-C269-8FOV 31.8*90mm
-
Handlebar - Promax HB-3188 22.2*31.8*700mm
-
Seatpost - Himiway Seatpost
-
Saddle - Himiway Saddle
-
Pedal - Aluminum pedal
-
Lights - 48V LED light
-
Kickstand - Heavy-duty aluminum kickstand
Others
-
Stem - Zoom TDS-C269-8FOV 31.8*90mm
-
Handlebar - Promax HB-3188 22.2*31.8*700mm
-
Seatpost - Himiway Seatpost
-
Saddle - Himiway Saddle
-
Pedal - Aluminum pedal
-
Lights - 48V LED light
-
Kickstand - Heavy-duty aluminum kickstand
