Magnum

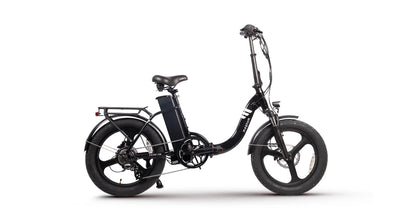

Magnum Premium 3 Low Step

Magnum Premium 3 Low Step

Regular price $1,799.00 USD
Regular price $2,499.00 USD Sale price $1,799.00 USD
Sale Sold out
Color

!!! 3% off if paid with Venmo, Zelle or cash !!!

Free maintenance for 1 year in store!

For all bike purchases in - store we put an assembly fee of $200.

PREMIUM 3 MANUAL

The Premium 3 is our newest iteration of our bestselling Premium line. We kept the beloved folding frame and 20 inch commuter friendly tires but upgraded the electric system to our latest and greatest version and we blew up the tires from 20X2.15 to a full 3 inch tire for better suspension and stability. The smaller frame and weight are why city commuters love to ride this bike.



Highlights

  • Category - Folding
  • Class - Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type - Low-step
  • Seating - Relaxed
  • Perfect For - Paved / Light Trails / Recreation

THE BATTERY

The heart of the Premium 3 is the integrated, long-range 48V / 15.6Ah / 749Wh Samsung battery that powers rides up to 50 miles, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

15Ah

50 miles (80 Kilometers) Max Range

7.5 Hours Charge Time

CONVENIENT FOLDING MECHANISM

Aluminum frame folds for easy travel and storage

The folding mechanism on the Premium 3 frame allows the user to carry the bike easily inside vehicles or store it in space-limited residences or offices.

POWERFUL HYDRAULIC DISC BRAKES

Powerful front and rear hydraulic disc brakes with stout rotors provide consistent, controlled stops in all conditions, and prolong rim life.

SHIMANO 7 SPEED DRIVETRAIN

The Shimano 7 Speed drivetrain includes a 14-28 freewheel to provide a wide range of gears to suit your needs.

LARGE DISPLAY WITH BACKLIGHT

The cockpit features a large display, with a backlight for clear visibility, and provides: Battery Level, Assist Level, Current Speed, Powerful Output, Trip Distance, Odometer, Range, Trip Time

POWERFUL BAFANG MOTOR

The powerful 500W rear geared hub Bafang Motor peaks at 750 watts and has cadence-sensing pedal assist. The power it produces provides a peppy ride that will climb hills faster and accommodate riders of all size.

3-INCH-WIDE FAT TIRES

Wide profile 20 x 3.0 tires provide a comfortable, stable ride and resist punctures over urban pavement or gravel paths.

COIL SPRING SUSPENSION FORK

The coil spring suspension fork accommodates a wide range of intended uses and body sizes, and includes an optional lockout for pavement riding. Great for increased comfort on bumpy terrain!

ELECTRONIC DETAILS

Motor Brand - Bafang

Motor Type - Geared Rear Hub

Motor Nominal Output - 500 Watts

Motor Peak Output - 750 Watts

Battery Voltage - 48V

Battery Ah - 15Ah

Battery Wh - 720Wh

Battery Chemistry - Li-NMC

Battery Charge Time (from empty) - 7.5 Hours

Minimum Range - 30 Miles (48 Kilometers)

Maximum Range - 50 miles (80 Kilometers)

Display Type - Magnum Branded VeloFox, 3.5" Diagonal, Fixed, Monochrome, Backlit LCD

Display Readouts - Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Drive Mode - Cadence Sensing Pedal Assist, Thumb Throttle (Sealed 12 Magnet Cadence Sensor)

Lights - Integrated Front Light w/Horn (20 Lux), Integrated Rear Light (20 Lux)

MECHANICAL DETAILS

Frame material - Aluminum Alloy

Frame size - 16.75" (42.5 cm)

Fork Details - Coil Spring Suspension w/Lockout

Gearing details - Shimano 7 Speed (14-28t Freewheel)

Shifter Details - Shimano 7 Speed

Crank - Alloy, 52t, 170mm

Pedals - Folding Platform

Stem - Folding Telescopic

Brakes - Hydraulic Disc Brakes

Grips - Ergonomic Faux Leather

Saddle - Padded Saddle w/Suspension

Tire Brand - 20 x 3.0

Wheel size - 20"

Fenders - Front and Rear Included

Chain - KMC

MEASUREMENTS

Seat Tube - 15" (42 cm)

Reach - 17" (47.5 cm)

Stand Over Height - 15.75" (40 cm)

Virtual Top Tube Length - 24.5" (62 cm)

Min Saddle Height - 21.75" (55 cm)

Max Saddle Height - 31.5" (80 cm)

Width - 25.5" (65 cm)

Wheelbase - 47" (119 cm)

Length - 68" (173 cm)

Total Weight - 62.25 lbs. (28.25 kg)

Battery Weight - 11 lbs. (5 kg)

Recommended Minimum Rider Height - 5'0"

WHAT'S INCLUDED

Kickstand - Left-side Chainstay Mount; Adjustable

Bell - Electric horn included

Charger - Included

Front Rack - N/A

Rear Rack - Included

Fenders - Front and Rear Included

Accessory Mounts - Top tube mounts for a water bottle cage (Cage/bottle not included)
