Mooncool

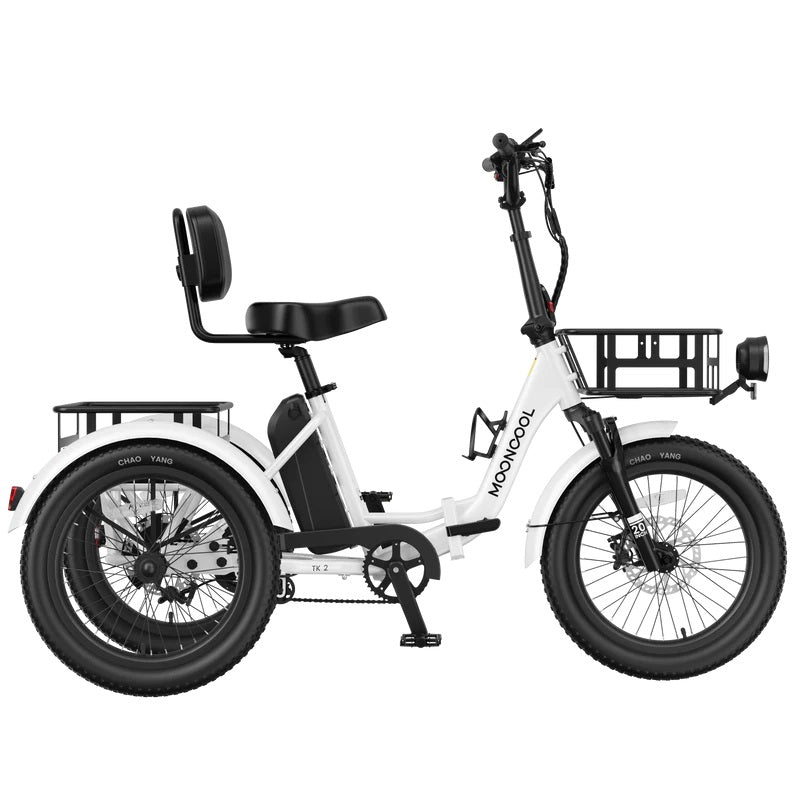

Mooncool TK2

Mooncool TK2

Regular price $1,499.00 USD
Regular price Sale price $1,499.00 USD
Sale Sold out
Color

Brand Philosophy

MOONCOOL believes that true mobility should be stable, safe, and convenient, providing a riding experience that builds confidence.

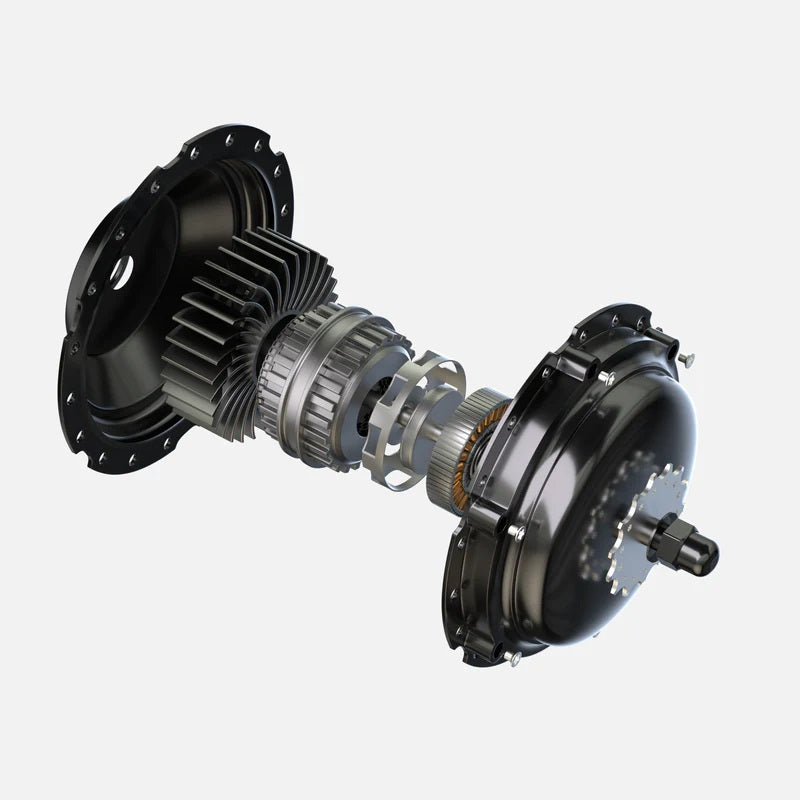

Mooncool TK2 500W rear motor

Helical Motor

48V 500W helical gear motor with 1092W peak power and 65Nm peak torque. Powerful, smooth, effortless.

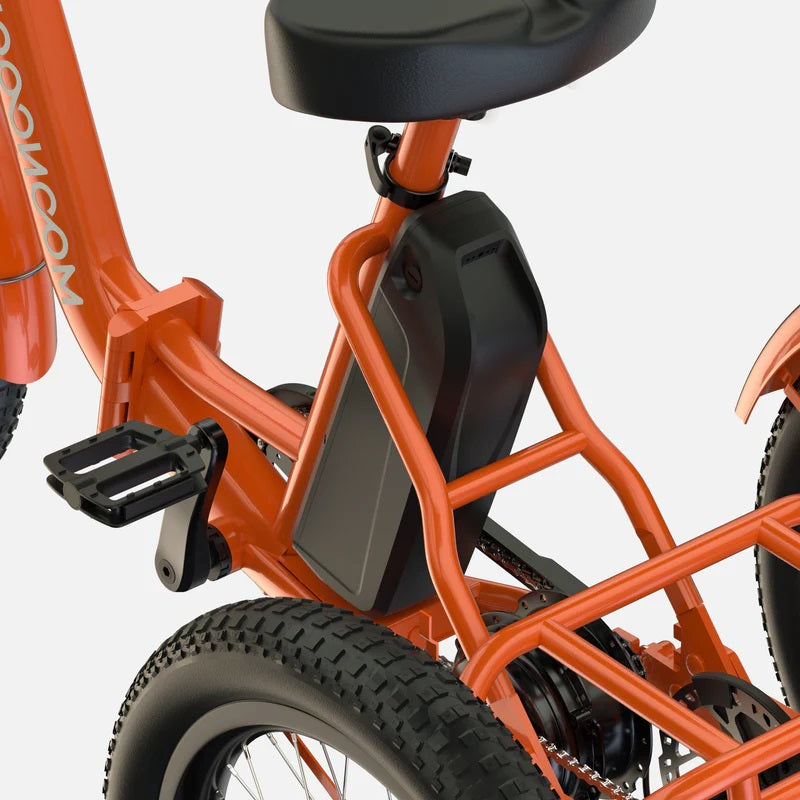

Mooncool TK2 removable battery

Battery Power

48V 15Ah removable lithium battery. Reliable range for daily rides, and easy to charge on or off the trike.

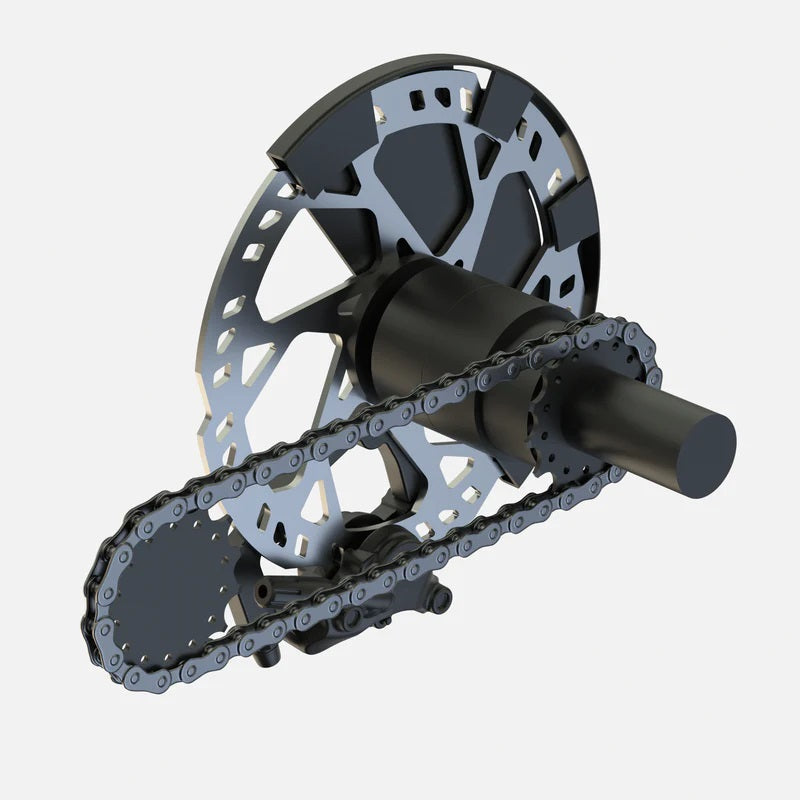

Mooncool TK2 rear differential

Speed Differential

A rear differential gives better control and stability on turns, so you can ride with confidence.

Mooncool TK2 suspension front fork

Suspension Front Fork

Absorbs bumps and shocks, and keeps the front wheel grounded through corners for a smoother, more controlled ride.

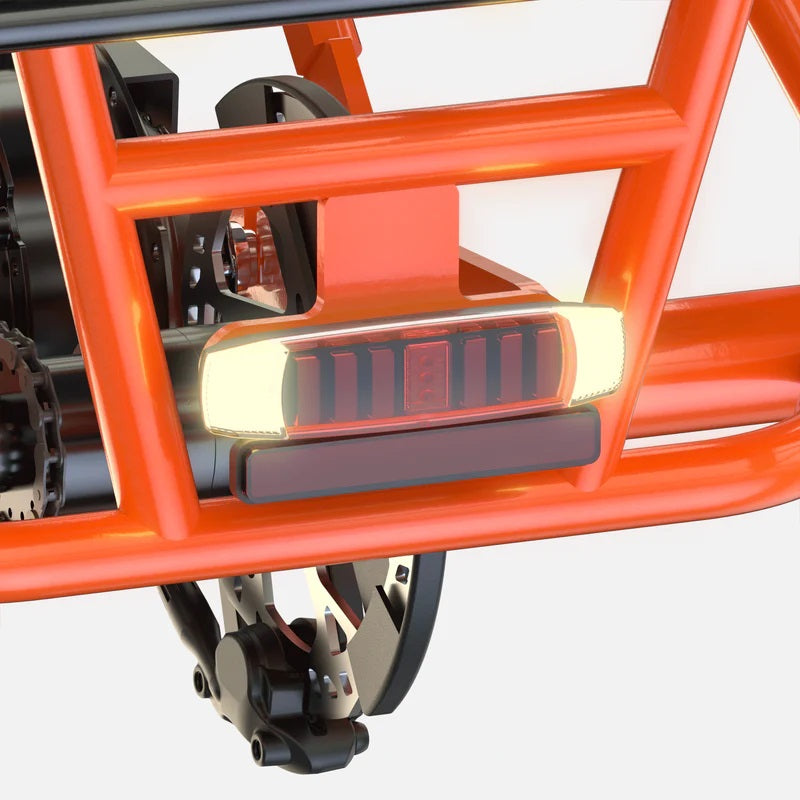

Mooncool TK2 red brake lights

High-Brightness Red Brake Lights

Integrated red tail lights light up when you brake, with built-in turn signals for better visibility and safety.

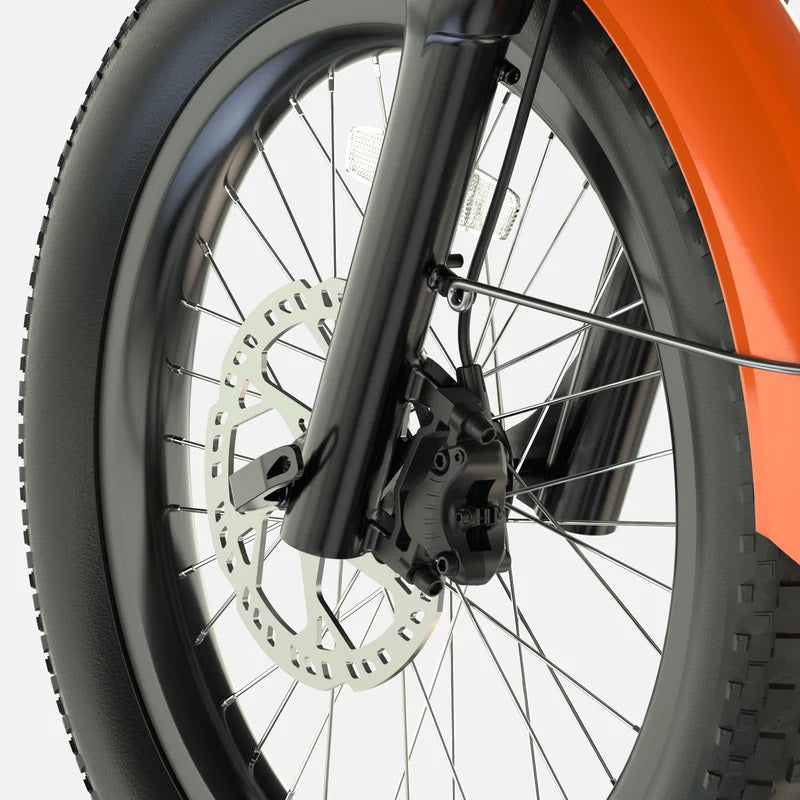

Hydraulic Disc Brakes

Hydraulic disc brakes with 180mm rotors give strong, smooth stopping. A parking brake keeps the trike in place, and the motor cuts off when you brake.

Reverse Mode

Back out of tight spots easily with reverse, which moves at under 2.5 mph.

Geometry

Mooncool TK2 geometry and folded size

Folded Size 39.4 (L) Γ— 30.3 (W) Γ— 29.5 (H) in
100 (L) Γ— 77 (W) Γ— 75 (H) cm
Recommended Rider Height 5'0" – 6'3" / 153 – 190 cm
A. Top Tube (Horizontal) 22 in / 558 mm
B. Wheelbase 36 in / 913 mm
C. Stand-Over Height 16 in / 407 mm
D. Handlebar Length 26 in / 660 mm
E. Total Length 66 in / 1670 mm
F. Total Width 29 in / 730 mm
G. Seat Height Min / Max 30.3 ~ 39 in
770 ~ 990 mm
H. Handlebar Height Min / Max 43.7 ~ 45.7 in
1110 ~ 1160 mm
I. Front Basket 12.6 Γ— 11.8 Γ— 5.7 in
320 Γ— 300 Γ— 145 mm
J. Rear Basket 18.9 Γ— 14.2 Γ— 6.3 in
480 Γ— 360 Γ— 160 mm
K. Wheel Size 20" Γ— 3.0"
L. Seat Size 11.8 Γ— 10.6 in
30 Γ— 27 cm

Components

Weight Net 90.4 lbs (41 kg), Gross 115.7 lbs
Max Load 450 lbs
Frame 6061 Aluminum + High-Tensile Steel, Folding Structure, Rear Differential
Fork Alloy suspension, 40mm travel, oil spring with mechanical lock-out
Brakes STARUNION hydraulic disc brakes, 180mm rotors, with parking brake and motor cutoff
Gearing Single speed
Handlebar Alloy, BMX style, 1.25 in bore, 25.98 in length, 4.72 in rise
Stem Forged alloy, 28.6 / 31.8mm clamp, folding, 178mm extension tube, sandblasted anodized black
Rim Alloy 20 in Γ— 30 Γ— 13G Γ— 36H, AV valve
Tire CHAOYANG H5183, 20" Γ— 3.0"
Spokes Stainless, 13G
Parking Brake Included
Fenders Included
Baskets Front and rear included

Specifications

Model Year 2026
Motor Rear hub, 48V, 500W (1092W peak), 65Nm
Battery Removable, 48V 15Ah (720Wh), 21700 lithium cells
Range 35 ~ 60 Miles
Charger 110-240V, 54.6V 2A (5A fast charger optional)
Charging Time 7 ~ 9 Hours
Top Speed 15.5 MPH
Controller Sine Wave FOC, 48V 20A peak
Pedal Assist 5 levels (Eco, Tour, Sport, Sport+, Turbo), 24-signal cadence sensor
Throttle Half-twist throttle
Reverse Yes, under 2.5 MPH
Display 3.5" TFT color display
Front Light 80 lux LED headlight with horn
Rear Light Tail light with brake light and turn signals
Certification UL 2849 & UL 2271 (SGS certified)

Speed & Class Settings

Class Class 2 (as listed by Mooncool)
Pedal assist Up to 15.5 mph, 5 levels
Throttle Half-twist throttle, up to 15.5 mph
Reverse Under 2.5 mph
Motor Rear hub, 500W (1,092W peak), 65Nm
Model year 2026

Warranty

Your TK2 comes with Mooncool's factory warranty for the original owner, starting from the date of purchase.

Part Coverage
Frame Lifetime
Battery 2 years
Motor and electrical parts (throttle, display, wiring, lights, charger) 1 year
Other parts (stem, handlebar, brakes, crankset, pedals, rims, hubs, fork and more) 1 year

Tires, inner tubes, brake pads and cables are not covered.

Warranty claims are handled by us at Voltaire Cycles. If something goes wrong, contact the shop or bring your trike in. We'll take care of the claim for you.
